Additional features

Global Data Sheets

For every project that is created in INGenious, a default global data sheet is generated. The data entered in the global data sheet can be referenced in any test data sheet within the project. This allows you to reuse the data across multiple test cases.

Where to use the Global Data?

Identify the Data column name which is common across multiple data sheets.

globaldatasheet1

Select that data value and click on global data icon, as shown in the image above. Give the global data id, in the respective window, as shown below,

globaldatasheet2

You will get the global id in the global data sheet, as shown below.

globaldatasheet3

Rename a Project

To rename your project, right click on the project name from the Test Plan section and choose Details from the context menu option.

details

The Project Details window opens and the following options are available in the window, as shown below.

details1

To rename your project, give the new name in the Project Name text box and click on Rename. Your project will be renamed.

The Open option opens the project location in your system.

Right below these options, you have details on the total number of scenarios, test cases, reusable components and test data sheets present in the project.

Execute A Reusable For Specific Set Of Data

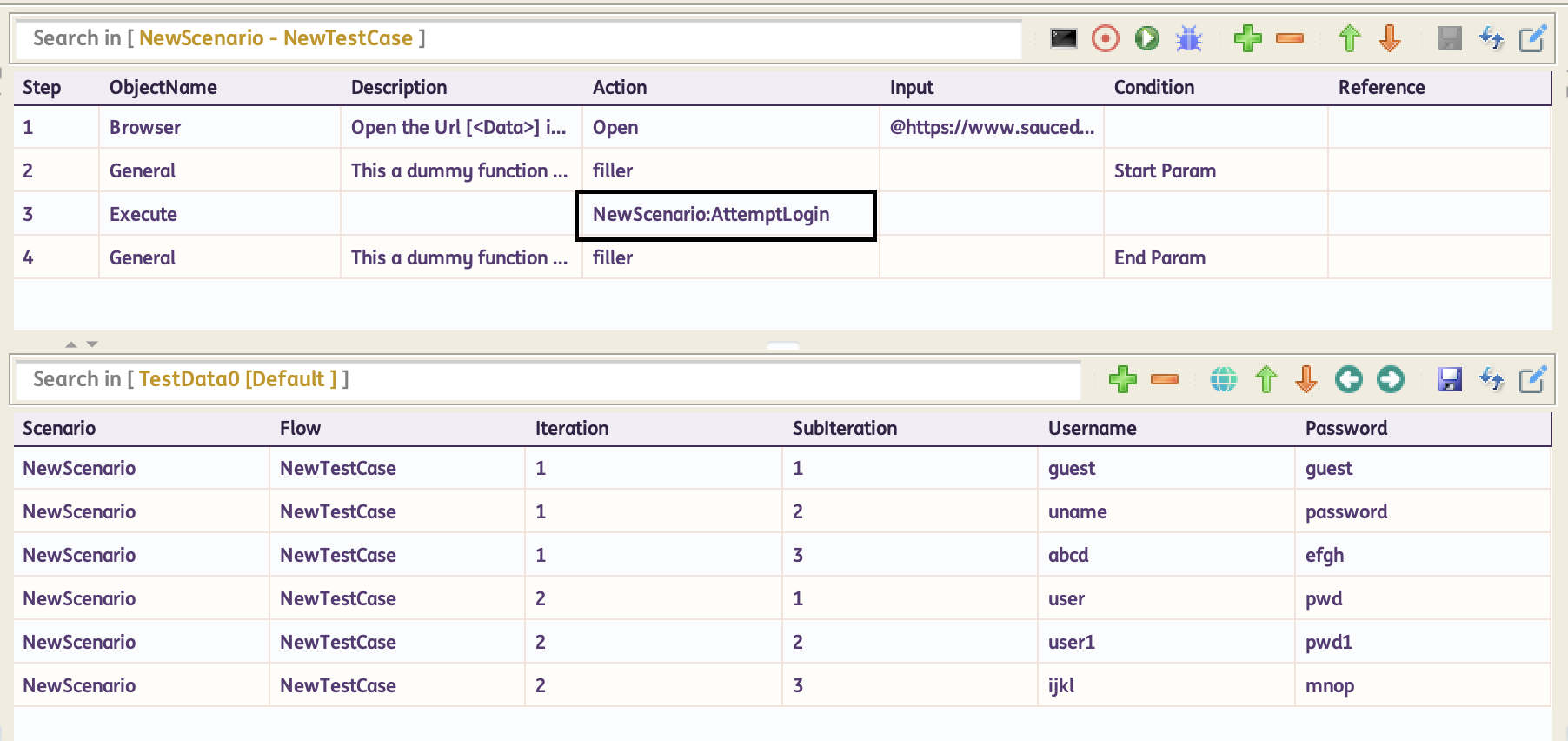

A reusable test case can be executed with a desired set of data by providing the sub iteration index in the Input column. It will fetch the data set from the data sheet with the desired index and use it within the test case. This is very useful when you want to execute the same reusable component, inside a single test case, with different set set of data passed each time.

subiteration

Looping

With DataWithout Data

NOTE: In Test Design panel, users are only given access to Iteration 1 and its various Subiterations

subiteration1

For the above image, Steps 2 to 4 will be executed 2 times (equal to the number of Sub iterations for Iteration 1)
For first iteration, data will be taken from Iteration 1 and Subiteration 1
For second iteration, data will be taken from Iteration 1 and Subiteration 2
In the above image, we have used End Param. This will execute Step 2 to 4, once and not twice.
To iterate through the entire Test Case for all the sub iterations of data in the data sheet, keep Start Param in the first step and End Param in the last step of your Test Case.

Looping Without Test Datasheet

To repeat few steps, use Start Loop and End Loop:@n.

looping

In the above image, Start Loop is at Step 3 and End Loop:@5 is at Step 7. So, Step 3 to 7 will be repeated 5 times.

Iterations And Subiterations In Test Execution Panel

NOTE: In the Test Execution panel, you are given access to all Iterations and their Sub iterations.

iterationOption

In the above image, there are some options given under the Iteration column
All: will Iterate through all your Iterations of your datasheet.
Single: will only Iterate through Iteration 1 of your datasheet.
n:n (Range): will Iterate through a range of iterations.

For example, if you use 2:5, then INGenious will only Iterate through Iteration 2 to Iteration 5 even if there are more iterations.
n: will allow you to Iterate a particular (nth) iteration in your datasheet.

For example, if you use 5, then INGenious iterate only the 5th iteration and all its sub iterations.

Note: Subiterations will work according to the definition of Start Param and End Param in the Test Design panel.

Handle actions before and after a step

In some applications, there may be components which will originate at random ie. the origination of such components cannot be predicted. This section will describe how to handle such components.

Logic

Since the origin of some components cannot be predicted, check for the availability of the respective component before or after performing each step.

How To Do It?

Open the Engine in Eclipse IDE (or any IDE supporting java development).
Navigate to com.ing.engine.execution.run.
The following actions will be available in this class Annotation
- beforeStepExecution: Enter the code to handle the component here, if you want to perform the check before the execution of each step.
- afterStepExecution: Enter the code to handle the component here, if you want to perform the check after the execution of each step.

How To Navigate between Test Data Sheets

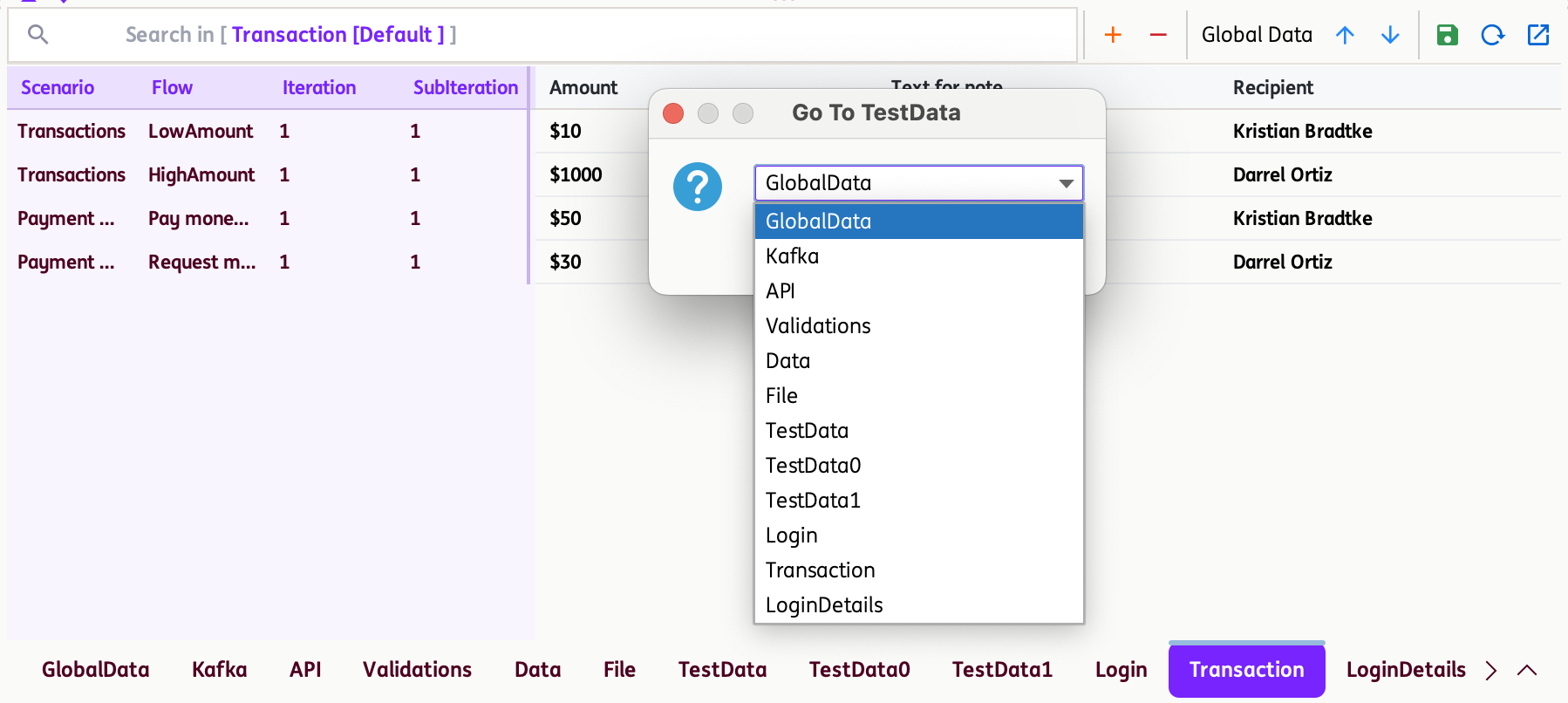

Right click on any data sheet and choose the option Search Test Data from the context menu
In the Go To Test Data window, choose the test data sheet or the global data sheet to which you want to navigate
You will be navigated to the respective sheet after clicking on [OK]

How To Search in Data Sheets

To search for values inside the cells, simply enter the search string (or even partial string) in the [Search Bar], and the search results will immediately show in green

search

To search for Columns using the Column Header, simply enter the search string (or even partial string) with '@' as prefix in the [Search Bar], and the search results will immediately show in green

search

User Defined Variables

User Defined variables can be created and defined by two ways as given below.

Using the actions AddVar and AddGlobalVar. AddVar action will let you define a variable whose scope is throughout the execution of your test case and is valid for all the sub-iterations of the iteration 1 of your test case. But AddGlobalVar action will let you define a variable whose scope is throughout the execution of your test set.
Navigate to Configuration Run Settings tab and provide your variable name and value under the Property Name and Value columns respectively, as shown in the screenshot below. Click on save for saving your settings.

These variables can now be used anywhere in your project.

In addition to these, we have certain actions that take variables as input and will store the corresponding result in the variable provided.

How To Change Report Theme

Go to Configuration Options Theme**.
From the Reporting theme, select a theme of your choice.
You can also toggle between Single and Group View.
You can choose which columns need to be displayed in the report.
Show or hide columns in the report using the show/hide columns option. Check the respective column name checkbox to display that column or uncheck the respective column name checkbox to hide it.

reporttheme

Filtering In Report

You can filter reports using Global Search or Column Search.

Sorting In Report

You can sort the reports using the up/down arrows beside each column name.

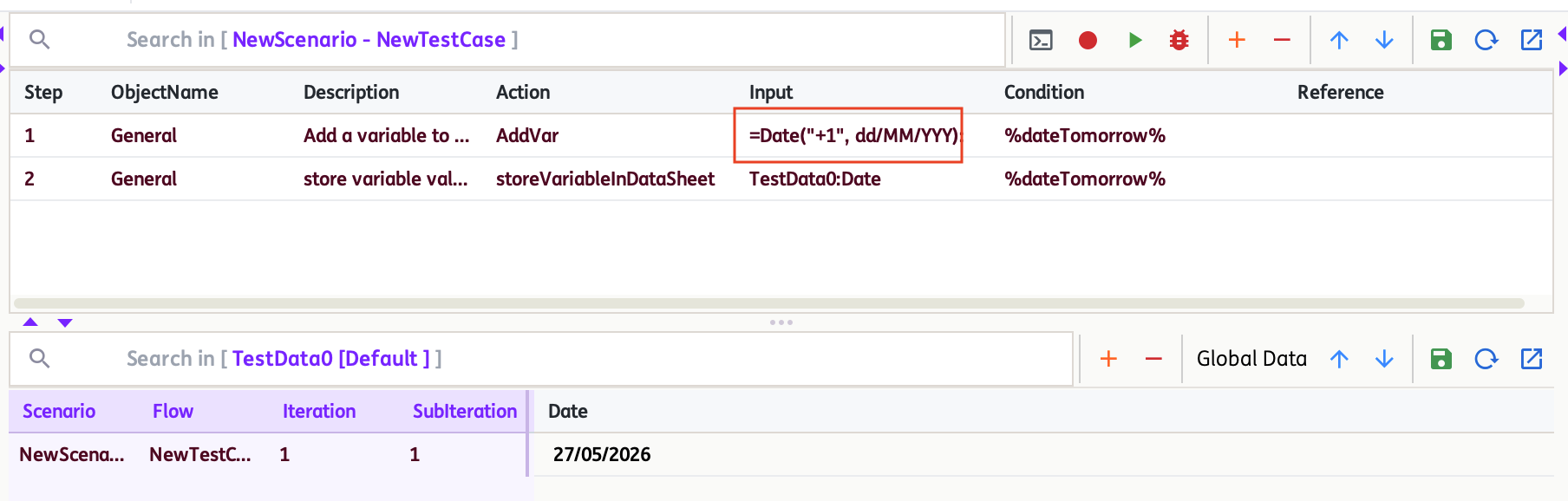

Generate Run Time Data

There are options available in the Input column to perform functions like rounding off numbers, generating a random number, concatenating strings, other arithmetic calculations and etc.

Follow the steps below to access those options.

Consider any action that requires Input column. For instance let us take the Print action. Instead of providing the URL directly, you can concatenate two strings that lead to the URL.

Function	Syntax	Description
`=Round`	=Round(Decimal Number)	Will Round Off the given decimal number
`=Pow`	=Pow(a,b)	Will return the value of a^b
`=Min`	=Min(a,b)	Will return the minimum number between a and b
`=Max`	=Max(a,b)	Will return the maximum number between a and b
`=Random`	=Random(a)	Will return a random number of "a" digits
`=Random`	=Round(a,b)	Will return a random number between "a" and "b"
`=Concat`	=Concat(a,b)	Will Concatenate the strings a and b
`=Date`	=Date("0", dd/MM/YYYY)	Will return the date in the specified format
`=Date`	=Date("+n or -n", dd/MM/YYYY)	Will add or subtract n days from the current date and display it in the specified format
`=ToLower`	=ToLower("DUMMY")	Will convert a String to lowercase
`=ToUpper`	=ToUpper("dummy")	Will convert a String to uppercase
`=getLength`	=getLength("TargetString")	Will return the length of a String, in this case 12
`=getOccurance`	=getOccurance(Original String,i)	Will return the number of occurance of a substring in a String, in this case 3
`=Trim`	=Trim(" TargetString ")	Will Trim a String
`=Replace`	=Replace('Target String','g','b',first)	Will replace first occurance of g with b. Output : Tarbet String
`=Replace`	=Replace(`%var%`,'g','b',first)	Suppose `%var%` has value 'Target String' then it will replace first occurance of g with b. Output : Tarbet String
`=Replace`	=Replace('Target String','g','b',all)	Will replace all occurances of g with b. Output : Tarbet Strinb
`=Replace`	=Replace(`%var%`,'g','b',all)	Suppose `%var%` has value 'Target String' then it will replace all occurances of g with b. Output : Tarbet Strinb
`=Substring`	=Substring(`%var%`,startindex,endindex)	Suppose `%var%` has value 'Netherlands' and start index as 3 and end index as 6 then it will give the substring. Output : her
`=Substring`	=Substring(`%var%`,startindex)	Suppose `%var%` has value 'Netherlands' and start index as 3 then it will give the substring. Output : herlands
`=Split`	=Split(`%var%`,'split String',index)	Suppose `%var%` has value 'Netherlands' and split string as 'e' and return string index as 1 then it will give the splitted string. Output : th
`=Split`	=Split(`%var%`,'split String',limit,index)	Suppose `%var%` has value 'Netherlands' and split string as 'e' and limit as 2 and return string index as 1 then it will give the splitted string. Output : therlands

Note: It is also possible to combine two relevant functions for optimum usage.| Example1: =Concat(Diaphragm,=Round(360.45)) Result: Diaphragm360
Example2: =Concat(James_,=Round(=Random(3))) Result: James_155.

Add Custom Functions For Run Time Data Generation

Navigate to :

com.ing.engine.util.data.fx; Functions.java add your custom function as shown below. This is an example of creating a Trim function which will accept a String input and will return a trimmed output.

public Object Trim(String... args) {
        String op = "";
        try {
            op = args[0].trim();

        } catch (Exception ex) {
            LOG.log(Level.SEVERE, ex.getMessage(), ex);
        }
        return op;
    }

Enabling/Disabling screenshots for Pass/Fail

In the report, you will be able to view the screenshots for the steps whose Status is PASS or FAIL. However, you have the option to enable/disable the screenshots for such steps.

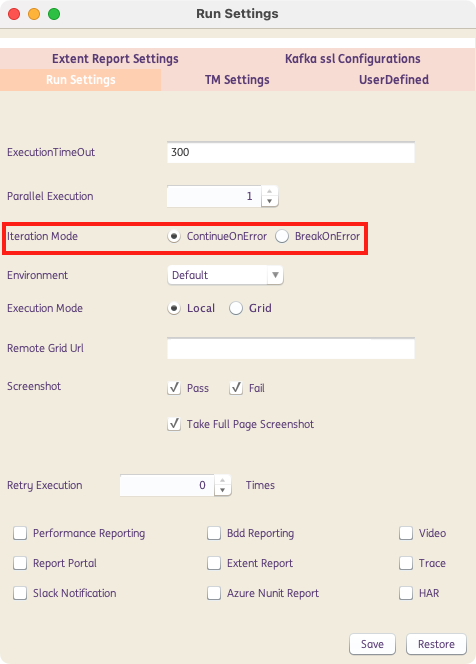

In the INGenious IDE, go to Configurations Run Settings.
Under Screenshot section, you can check/uncheck the Pass or Fail checkboxes in order to enable/disable the screenshots in the report.
To enable/disable the screenshots for the entire page, check/uncheck the Take Full Page Screenshot checkbox.

Note: Give the status as PASSNS or FAILNS under the Report.updateTestLog() method for PASS status without screenshot or FAIL status without screenshot respectively.

Execution in debug mode

You can debug the errors in your test case by adding breakpoints to the desired test steps and running the test case in debug mode.

Select the steps for which you wish to add a breakpoint, right click and choose Toggle Breakpoint.
Right click the Debug button (situated next to the run button), select the browser of your choice and click the Debug button.
Once the execution starts, the debug toolbar will appear on top of the screen as shown below. The execution will pause at the step where the breakpoint has been added. You can then debug your test case accordingly.

debug

To view the console log, click the button.
To pause the execution of the test case, click the button. Once the execution has been paused, you can insert new succeeding steps in the test case or check the object properties using Object Heal and update them.
To resume the execution of the test case, click the button.
To move to the next step of the test case, click the button.
To stop the execution of the test case, click the button.

Note: In addition to adding breakpoints to the test steps, you can comment the selected test steps as well, by performing right click and choosing the option Toggle Comments.
