Database Testing


What is Database Testing?

Database testing involves validating the integrity, accuracy, and reliability of data stored in a database. It ensures that the database performs as expected under various conditions and that data is correctly stored, retrieved, and manipulated

How does INGenious perform Database Testing?

INGenious uses JDBC to interact with databases and perform automated testing against it. INGenious creates an abstraction layer on top of most of the actions and capabilities, making it easy for even non-technical people to write automated tests.

Most database actions are pre-built inside INGenious. So the users can simply select them from the INGenious IDE making test design fast and easy.


Set up Database Connection

  • Include the appropriate database dependency in the pom.xml file.

    Note: By default, MySQL and Oracle dependencies are already included.*

  • To configure a database connection from INGenious, follow the steps below:

    • Click on the Configuration icon browserConfig
    • Under Database Configurations you will see the Database Alias as default. Change the values as per requirement.

      dbSettings

    • There are two ways to provide the property values:

      1. Hardcoded values – These are values explicitly defined within the configuration. They remain constant and do not change across environments.
      2. Dynamic values – These values can be defined using runtime variables, user-defined variables, datasheet entries, or any combination of these sources. This approach allows for flexibility and adaptability across environments.

      For example:

      • The username might be sourced from a datasheet variable.
      • The password could be defined as a runtime variable.
      • The connection string might be a combination of both, allowing dynamic resolution based on context.

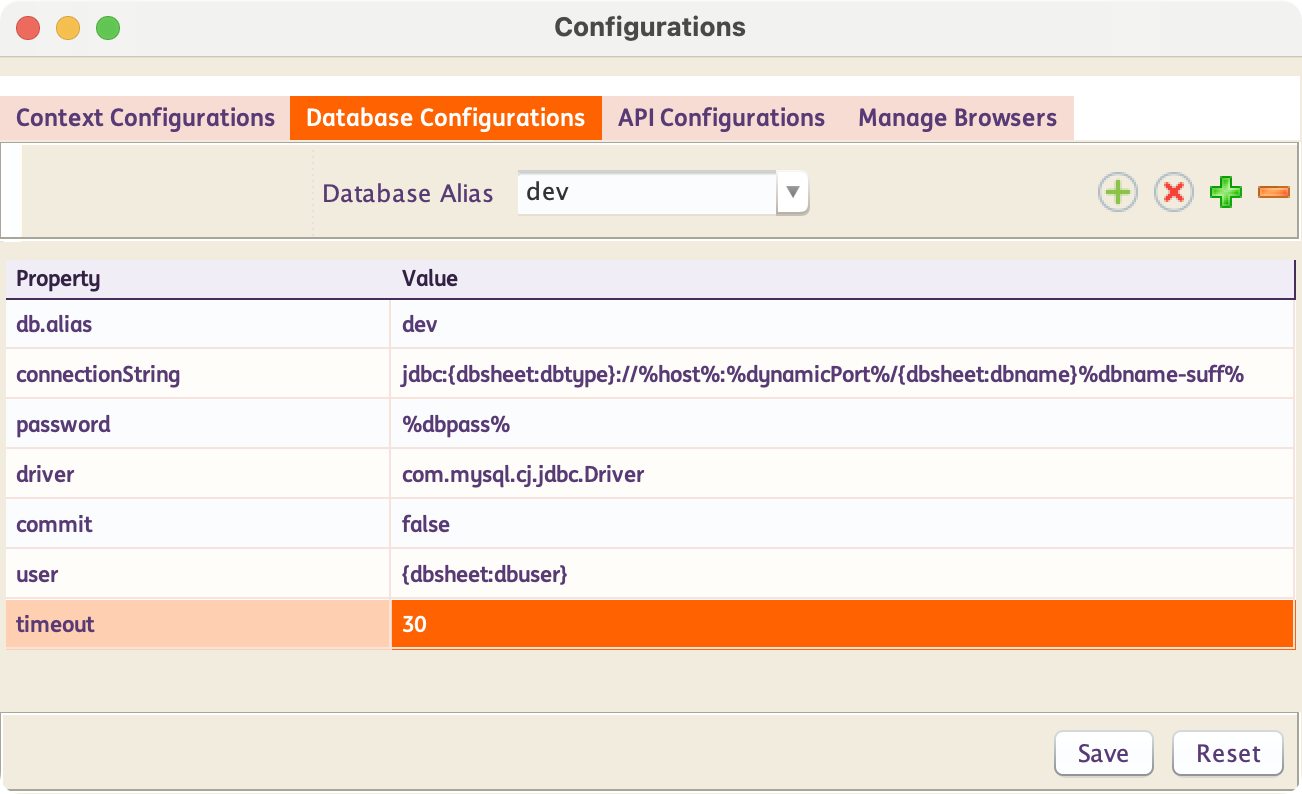

      db_dynamic_config


Create New Database Configuration

To create a new database configuration, follow the steps below :

  • Click on the Configuration icon browserConfig

  • Inside the Database Configurations tab, Enter the Database Alias and hit Enter . Alternatively you can also click on the add icon.

    createConfig

In Java if you were to manually connect, you would invariably use the following :

Class.forName("com.mysql.cj.jdbc.Driver");
Connection con = DriverManager.getConnection("jdbc:mysql://localhost:3306/productDB", "My_DB_UserName", "My_DB_Password");

User Added Database Configuration Property

  • INGenious allows users to add database properties thru the Database Configurations window. This give users flexibility in connecting to their preferred data sources.

Handling and integration of these configurations on the backend is the responsibility of the user.

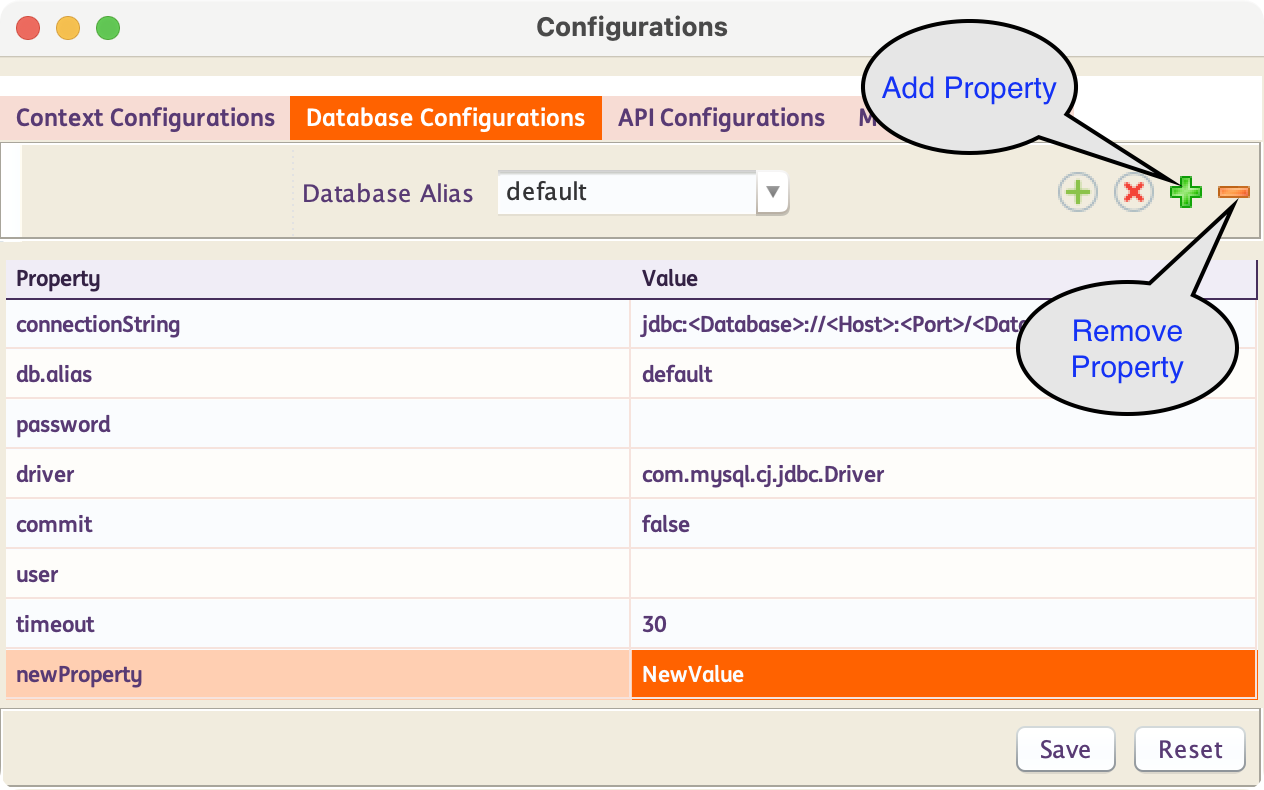

addAndRemovePropertyButtons

  • Add a new property

    1. Click the Add Property button addProperty.
    2. Add the property key (e.g., autoReconnect, timeout, sslMode).
    3. Provide the corresponding property value.
    4. Click Save to apply the changes.
  • Remove a property

    1. Select the property you want to remove.
    2. Click the Remove Property button renmoveProperty.
    3. Click Save to apply the changes.

Additional Database Configuration Property

Below are examples of additiona Database configuration properties.

  • You can add your database configuration by including the necessary settings directly in the JDBC connection string, allowing you to manage parameters such as session variables at the time of connection.

    Note: Please consult your database documentations for details.

MySQL JDBC connection string format

jdbc:mysql://[hostname:port]/[database]?[properties]

Example of MySQL JDBC connection string

jdbc:mysql://localhost:3306/mydatabase?autoReconnect=true&characterEncoding=UTF-8

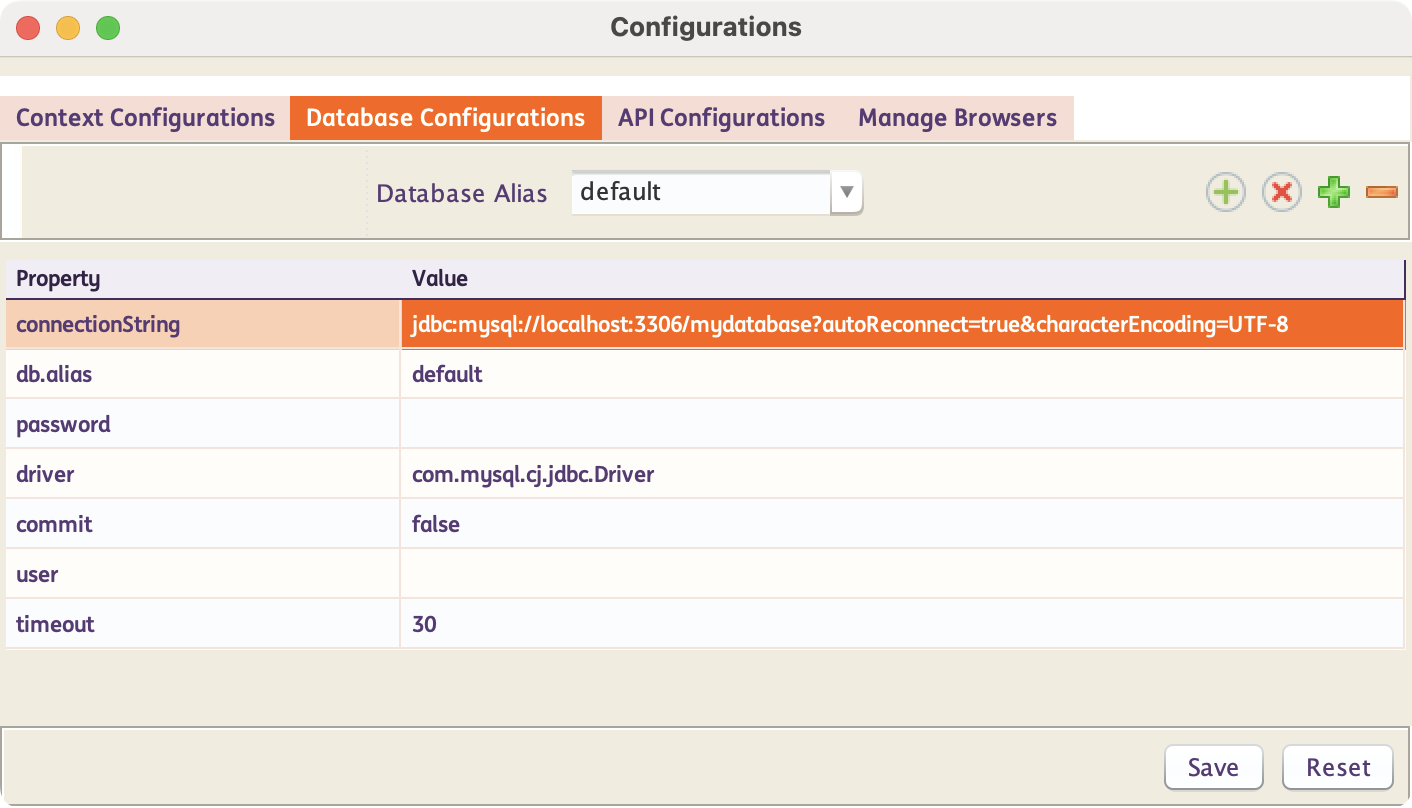

jdbc_connection_string_example

Oracle JDBC connection string format

jdbc:oracle:thin:@'(DESCRIPTION=(RETRY_COUNT=<Your retry count>)(RETRY_DELAY=<Your retry delay>)(ADDRESS_LIST=(LOAD_BALANCE=ON)(ADDRESS=(PROTOCOL=TCP)(HOST=<Your hostName>)(PORT=<Your Port Name>)))(CONNECT_DATA=(SERVICE_NAME=<Your service name>)))'

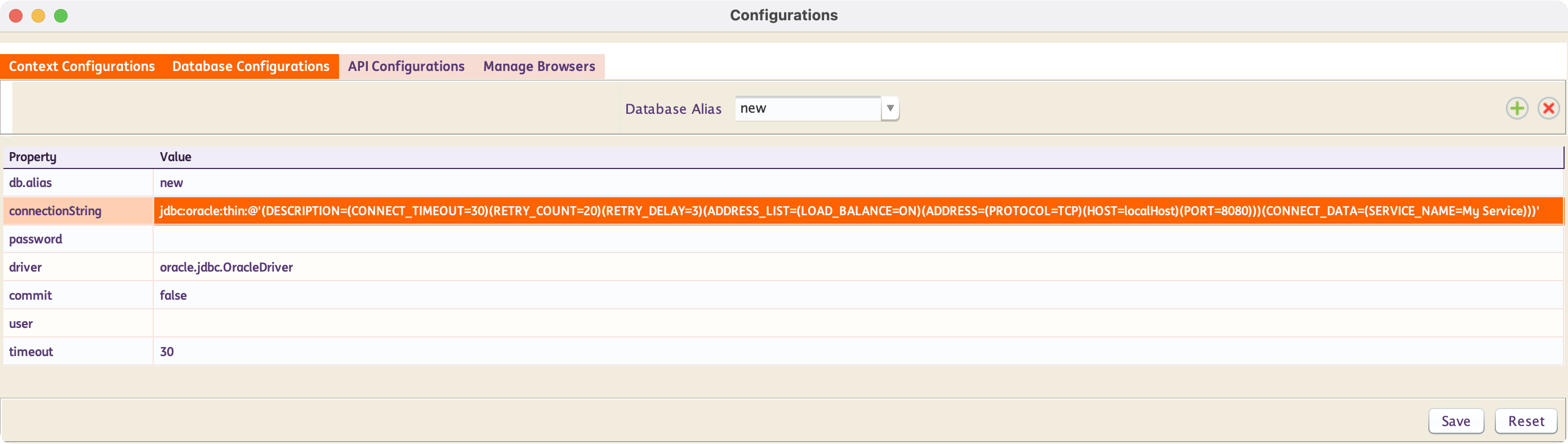

Example of Oracle JDBC connection string

jdbc:oracle:thin:@'(DESCRIPTION=(RETRY_COUNT=20)(RETRY_DELAY=3)(ADDRESS_LIST=(LOAD_BALANCE=ON)(ADDRESS=(PROTOCOL=TCP)(HOST=localHost)(PORT=8080)))(CONNECT_DATA=(SERVICE_NAME=My Service)))'

alt text


Write your first Database Test

  • At the beginning, there should be the initDBConnection step to conect to a database. This requires the Database Alias (which you configured following the steps above) in the Condition column.

  • Then there should be steps to execute the SQL Statements like executeSelectQuery, executeDMLQuery, storeResultInDataSheet, storeResultInVariable

  • The steps above, come with an editor which makes parameterization of data in the SQL statments very easy. [See the section below]

  • Eventually there should be steps to validate/store result-set specific columns or the entire result.

  • A Database test case should contain a closeDBConnection action at the end for clean-up.

database

The above is an example of a Database Testcase.


Query Parameterization

Parameterization of the SQL statements can be done using the built-in editor. If you mouse-hover on the Input column, corresponding to the Query steps, an option to open up the Editor comes up.

The list of Query steps is as follows :

  • executeSelectQuery
  • executeDMLQuery
  • storeResultInDataSheet
  • storeResultInVariable

Inside this editor, we can write the SQL statement and then parameterize the the table names, column names, where clause etc. based on our needs.

If we press Ctrl+Space the list of all available DataSheets : ColumnNames along with all user-defined variables show up. We can then select the appropriate item from where we want to parameterize.

We need to press Esc to close the editor

editor


Make sure to check out the following topics :

Database Actions
